Dec 302013


you will recognize:

http://www.blueskyrotor.com/performance/datasheet/Changhe__Aircraft/WZ_10-WZ_10-SAEC
http://www.blueskyrotor.com/performance/datasheet/Harbin__Aircraft/Haitun-Z_9-W
http://www.blueskyrotor.com/performance/datasheet/AviCopter/AC313-AC313

and some Mi-8/Mi-17

from http://sobchak.wordpress.com/2013/12/30/video-chinese-army-aviation-was-apocalypse-now-ha-fatto-scuola/

Dec 302013

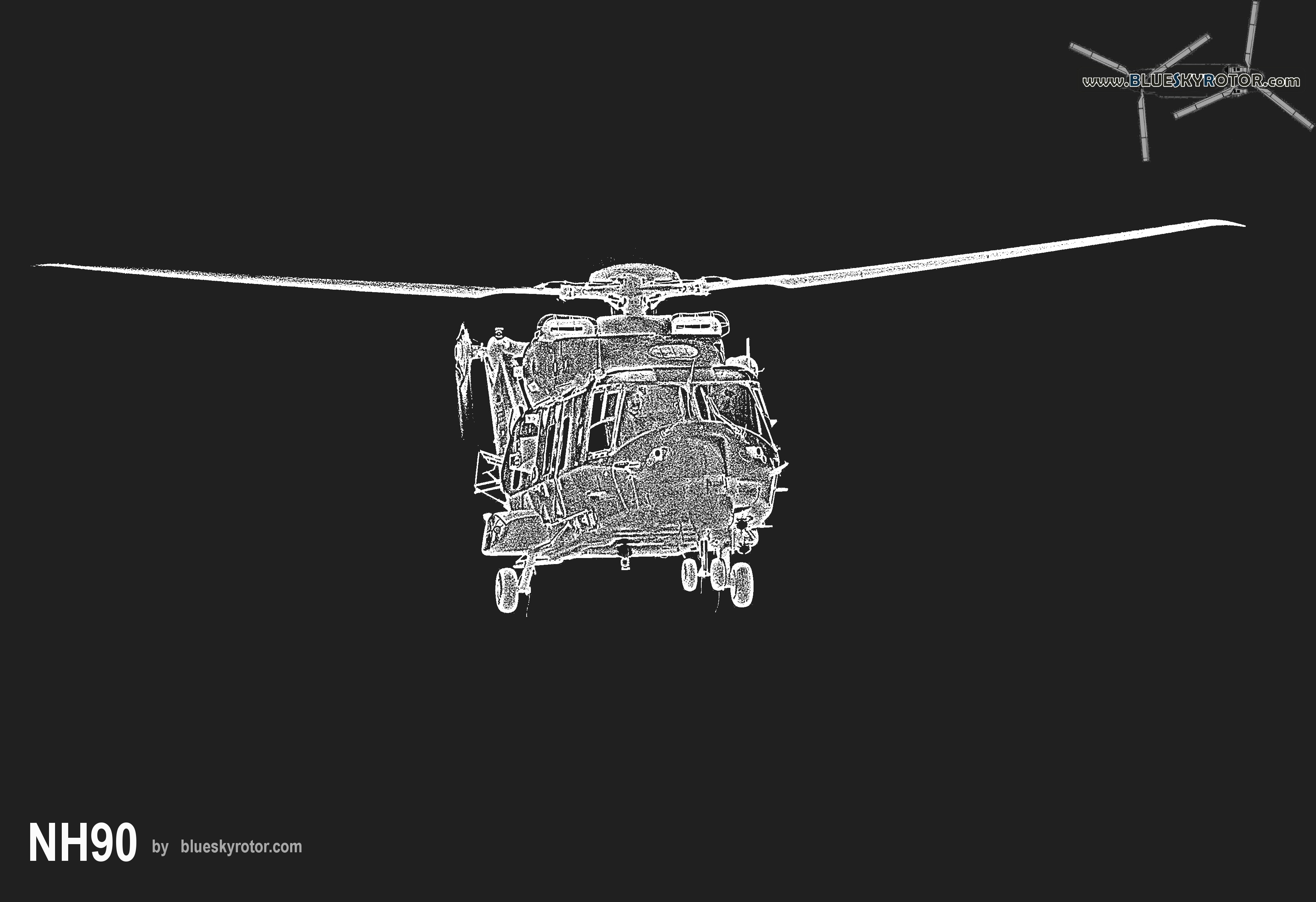

NH90
Dec 032013

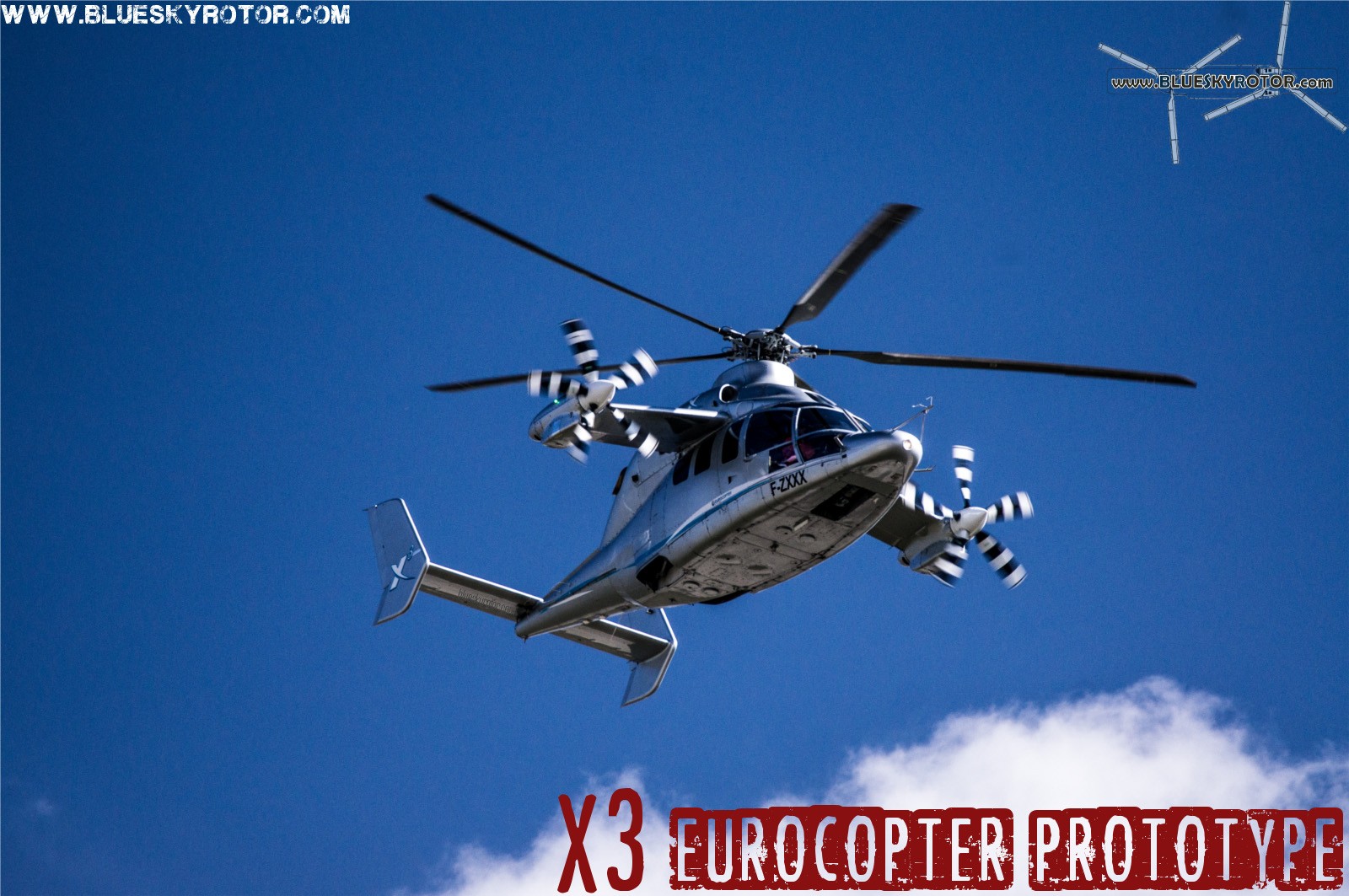

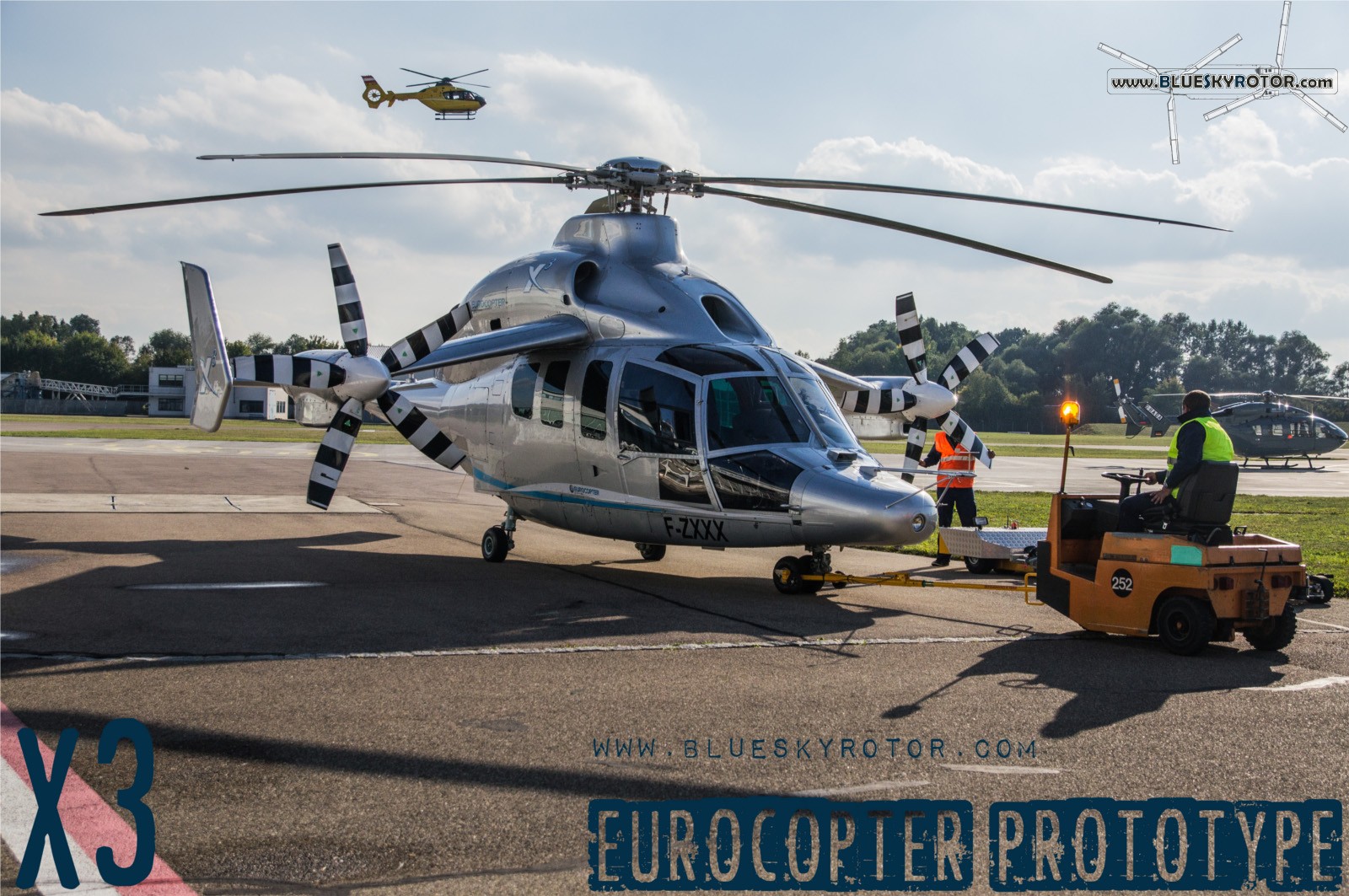

X3 cockpit, Eurocopter high speed prototype

This article refers to the great report by Ernie Stephens in Aviation Today

How to speed up when you’re in the X3? …easy: push the button!

X3 cockpit, Eurocopter high speed prototype

X3 cockpit, Eurocopter high speed prototype

Which one? On the picture above, there is only a thrust control lever. As Ernie explains:

In the X3, the TCL on the center console isn’t touched. Forward thrust is applied by thumbing a small, momentary-contact, hat switch mounted on the collective. Push it forward to increase the power, tap it backwards to decrease it. The TCL moves forward and back as the hat switch is actuated, but is only manipulated by hand as an emergency procedure if the hat switch fails.

The TCL, the handle located on the centre console, is actually not used during the flight. It is only here as a backup.

Thrust Control Lever, on the central control panel in the Eurocopter X3 cockpit

Thrust Control Lever, on the central control panel in the Eurocopter X3 cockpit

Now, look at the collective below and find the hat switch.

hat switch on the collective used to increase translational speed in the Eurocopter X3 prototype high speed helicopter

hat switch on the collective used to increase translational speed in the Eurocopter X3 prototype high speed helicopter

“Are you ready to go flying?” asked Jammayrac. “Yes, sir,” I replied. “All you have to do is push the throttle switch forward,” he instructed. “Don’t do anything else.” And that was when the X3 stopped being a helicopter and became a King Air!

Regardless of whether I “beeped” the throttle hat switch on the collective or held it forward, I could feel the power come in.

source:
http://www.aviationtoday.com/the-checklist/Pilot-Report-The-Exciting-Experimental-Exceptional&thinspX3_76928.html#.Up4dtsTuKT0

More photos:
http://www.blueskyrotor.com/performance/datasheet/Airbus__Helicopters/X3-X3
