Eurocopter

Ecureuil AS350 B3e

tags: Aerospatiale squirrel astar esquilo Civil Utility Transport Law

manufaturer and designation changed, please refer to:

Airbus Helicopters Ecureuil H125

aircraft

Manufacturer:

Eurocopter

Country:

Europe

Commercial designation:

Ecureuil

Technical designation:

AS350

Version, Variant:

B3e

Type:

Conventional

Currently produced:

N

Typical missions:

Civil Utility Transport Law

Flight conditions:

First flight:

2011

Landing system:

skids

Blades number:

3

Tail blades number:

2

weight

MTOW with external loads:

2800 kg

6174 lbs

MTOW with only internal loading:

2370 kg

5225.85 lbs

Empty weight:

0 kg

0 lbs

External payload:

1400 kg

3087 lbs

Internal payload:

0 kg

0 lbs

Standard fuel tank:

432 kg

952.56 lbs

with optionnal external fuel tank:

0 kg

0 lbs

performance

Cruise speed:

235 km/h

126.9 kt

Maximum cruise speed:

259 km/h

139.86 kt

Vne:

287 km/h

154.98 kt

Max negative g @ MTOW:

0 g

Max positive g @ MTOW:

0 g

Range with normal tanks:

638 km

344.52 nm

Max range with auxiliary external tanks:

0 km

0 nm

Max endurance @ min consumption speed:

04:23:00 h:min

Rate of climb @ SL:

10 m/s

1968 ft/min

Rate of climb @ SL @MTOW:

0 m/s

0 ft/min

IGE max hovering altitude, MTOW:

4023 m

13195.44 ft

IGE max hovering altitude, empty:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

OGE max hovering altitude, MTOW:

3383 m

11096.24 ft

OGE max hovering altitude, empty:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

Service ceiling ISA, MTOW:

5044 m

16544.32 ft

Max operating altitude, empty weight:

7010 m

22992.8 ft

Highest use Temperature:

40 °C

72 °F

Lowest use Temperature:

-40 °C

-72 °F

power

APU in HC:

Engine manufacturer:

Turbomeca

Model:

Arriel 2D

Engines quantity:

1

Powerplant category:

turbine

Main rotor rotation speed:

0 rpm

Fuel consumption @ SL @ max continuous speed:

0 kg/kW/h

0 lbs/hp/h

Minimum consumption speed @ SL:

0 km/h

0 kt

Fuel consumption @ eco cruise speed @SL:

0 kg/h

0 lbs/h

Fuel consumption @ min consumption speed @ SL:

0 kg/h

0 lbs/h

Engines nominal power:

0 kW

0 hp

Transmission shaft max continuous power:

0 kW

0 hp

Transmission shaft max power:

0 kW

0 hp

Takeoff power 5 min:

632 kW

858.888 hp

OEI 30s power:

0 kW

0 hp

OEI 2min power:

0 kW

0 hp

OEI max continuous power :

0 kW

0 hp

OEI max continuous transmission power:

0 kW

0 hp

OEI 30 sec transmission power:

0 kW

0 hp

OEI 2 min transmission power:

0 kW

0 hp

dimensions

Overall length:

0 m

0 ft

Rotor diameter:

0 m

0 ft

Tail rotor diameter:

0 m

0 ft

Fuselage length:

0 m

0 ft

Overall height:

0 m

0 ft

Main rotor blades chord:

0 m

0 ft

Tail rotor blades chord:

0 m

0 ft

Mast tilt angle:

0 °

noise

Noise at flyover, level:

0 dB EPNL

Noise at flyover, limit:

0 dB EPNL

Noise at takeoff, level:

0 dB EPNL

Noise at takeoff, limit:

0 dB EPNL

Noise at landing, level:

0 dB EPNL

Noise at landing, limit:

0 dB EPNL

crew and pax

Crew:

1

Max pax number:

6

use

Average price:

0 $

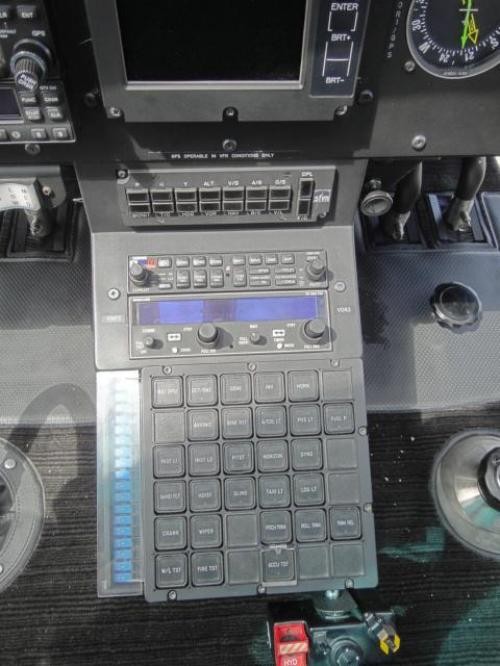

cockpit central panel

Eurocopter Ecureuil AS350 B3e

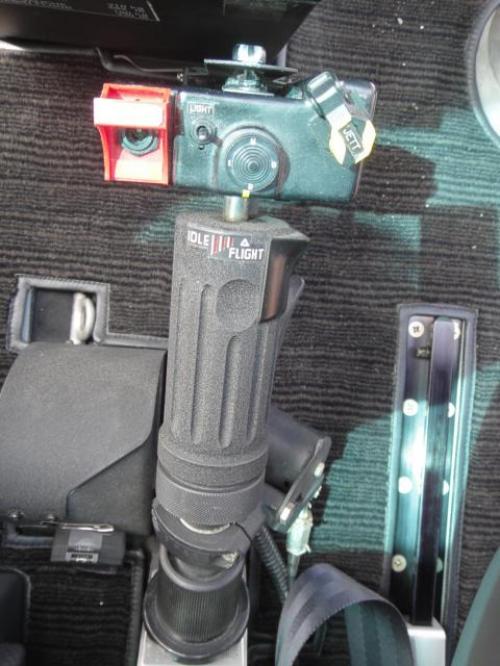

cockpit collective.JPG

Eurocopter Ecureuil AS350 B3e

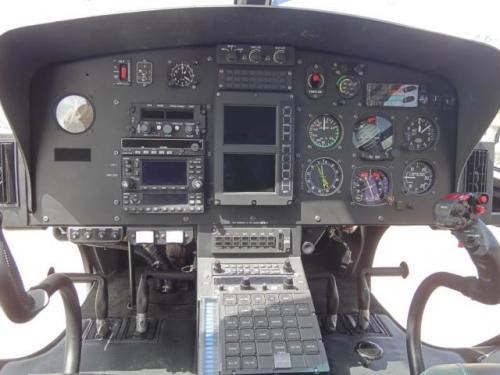

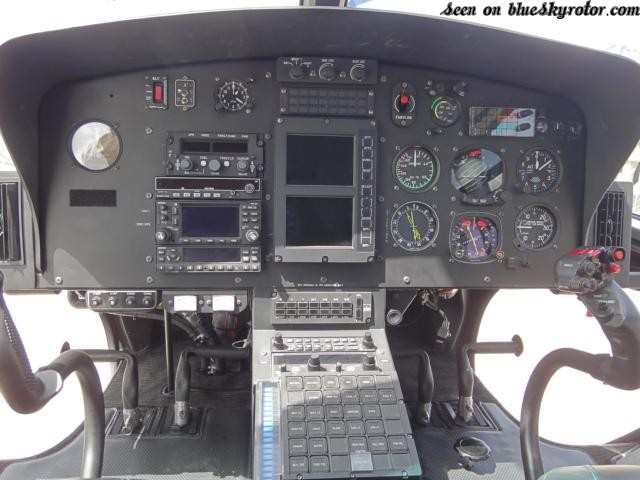

cockpit general

Eurocopter Ecureuil AS350 B3e

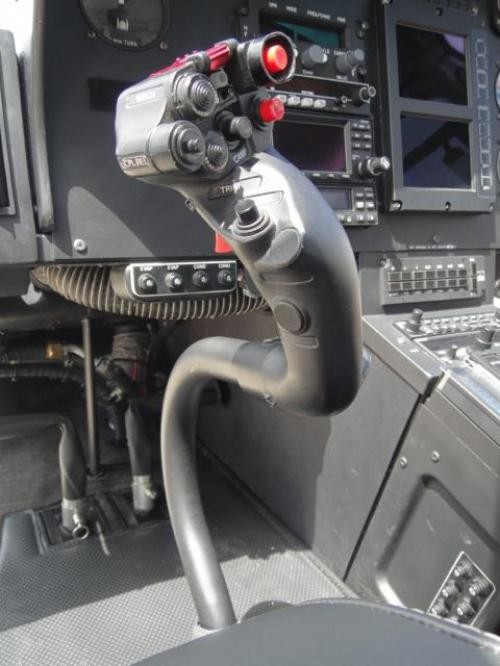

cockpit steering stick

Eurocopter Ecureuil AS350 B3e

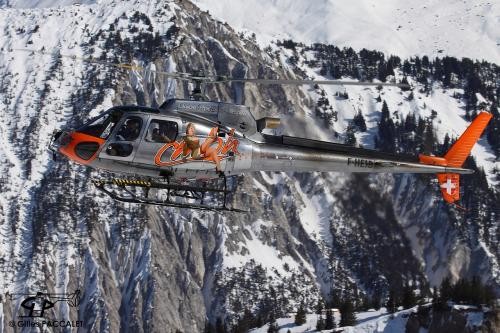

general

Eurocopter Ecureuil AS350 B3e

source: www.holding-point.fr

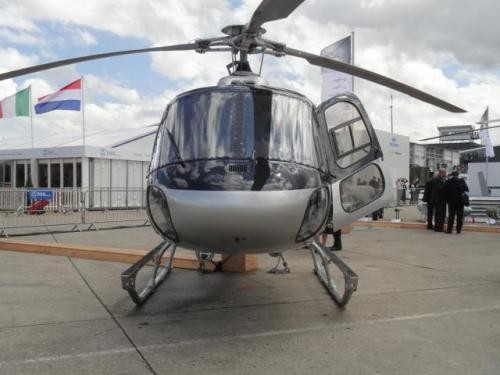

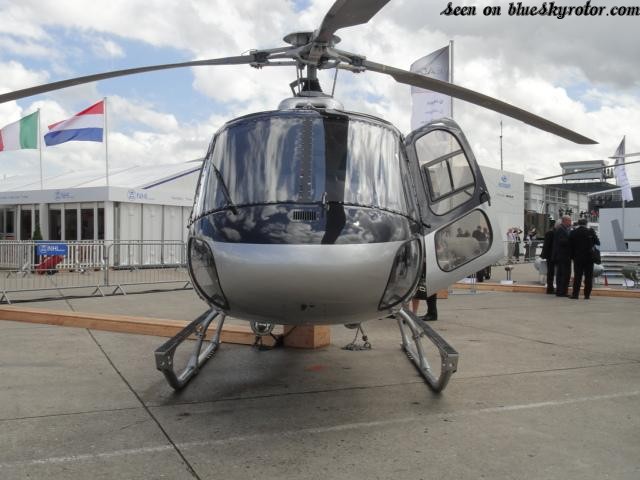

front side

Eurocopter Ecureuil AS350 B3e

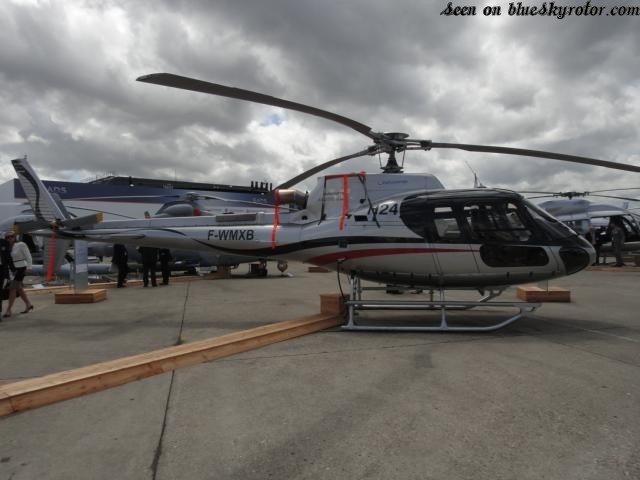

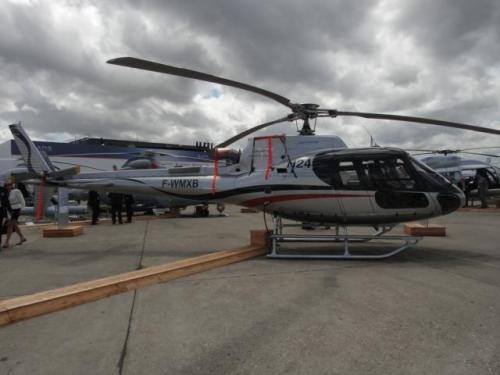

right side

Eurocopter Ecureuil AS350 B3e

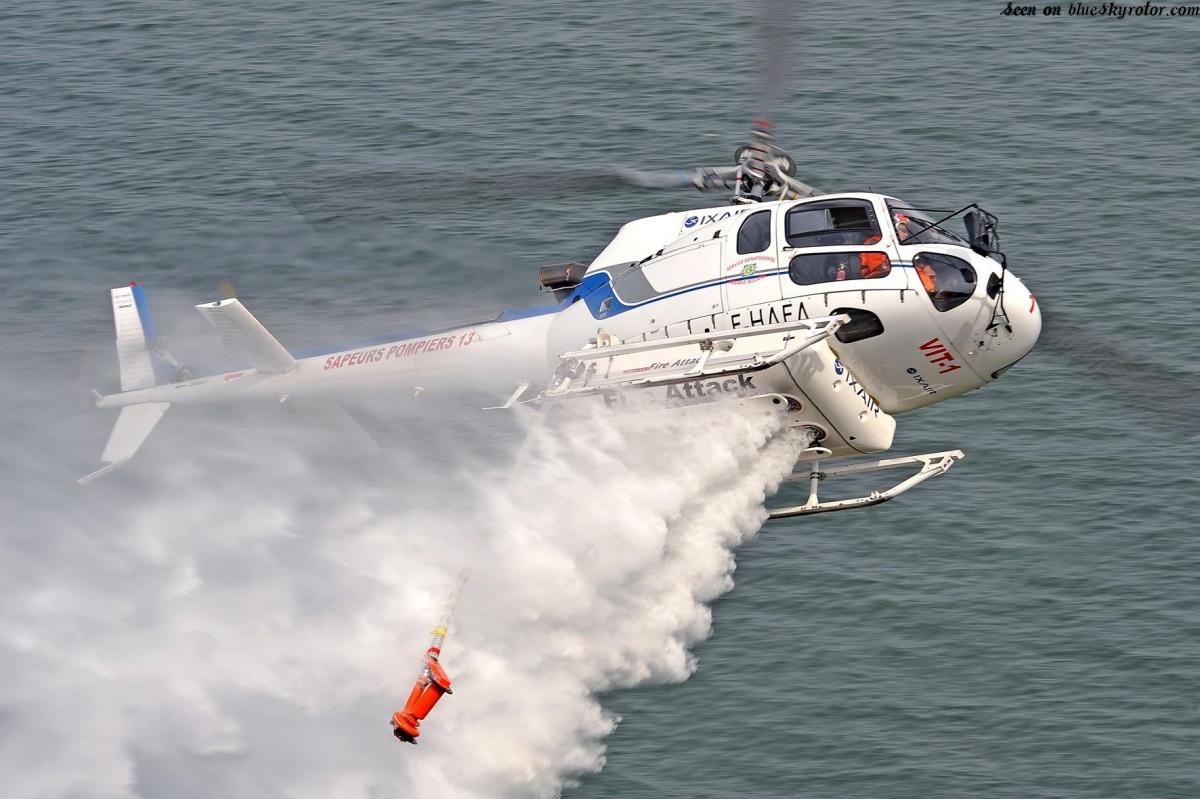

water bomber

Eurocopter Ecureuil AS350 B3e
