Mosquito Aviation

Mosquito XE

tags: kit helicopter Civil

aircraft

Manufacturer:

Mosquito Aviation

Country:

New Zealand

Commercial designation:

Mosquito

Technical designation:

Mosquito

Version, Variant:

XE

Type:

Conventional

Currently produced:

Y

Typical missions:

Civil

Flight conditions:

VFR

First flight:

0

Landing system:

skids

Blades number:

2

Tail blades number:

2

weight

MTOW with external loads:

277 kg

610.785 lbs

MTOW with only internal loading:

277 kg

610.785 lbs

Empty weight:

135 kg

297.675 lbs

External payload:

0 kg

0 lbs

Internal payload:

109 kg

240.345 lbs

Standard fuel tank:

36.3 kg

80.0415 lbs

with optionnal external fuel tank:

36.3 kg

80.0415 lbs

performance

Cruise speed:

0 km/h

0 kt

Maximum cruise speed:

0 km/h

0 kt

Vne:

0 km/h

0 kt

Max negative g @ MTOW:

0 g

Max positive g @ MTOW:

0 g

Range with normal tanks:

241 km

130.14 nm

Max range with auxiliary external tanks:

0 km

0 nm

Max endurance @ min consumption speed:

00:00:00 h:min

Rate of climb @ SL:

0 m/s

0 ft/min

Rate of climb @ SL @MTOW:

0 m/s

0 ft/min

IGE max hovering altitude, MTOW:

2440 m

8003.2 ft

IGE max hovering altitude, empty:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

OGE max hovering altitude, MTOW:

2000 m

6560 ft

OGE max hovering altitude, empty:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

Service ceiling ISA, MTOW:

0 m

0 ft

Max operating altitude, empty weight:

0 m

0 ft

Highest use Temperature:

0 °C

0 °F

Lowest use Temperature:

0 °C

0 °F

power

APU in HC:

Engine manufacturer:

Compact Radial Engines

Model:

MZ202

Engines quantity:

1

Powerplant category:

piston

Main rotor rotation speed:

540 rpm

Fuel consumption @ SL @ max continuous speed:

0 kg/kW/h

0 lbs/hp/h

Minimum consumption speed @ SL:

0 km/h

0 kt

Fuel consumption @ eco cruise speed @SL:

0 kg/h

0 lbs/h

Fuel consumption @ min consumption speed @ SL:

0 kg/h

0 lbs/h

Engines nominal power:

45 kW

61.155 hp

Transmission shaft max continuous power:

0 kW

0 hp

Transmission shaft max power:

0 kW

0 hp

Takeoff power 5 min:

45 kW

61.155 hp

OEI 30s power:

0 kW

0 hp

OEI 2min power:

0 kW

0 hp

OEI max continuous power :

0 kW

0 hp

OEI max continuous transmission power:

0 kW

0 hp

OEI 30 sec transmission power:

0 kW

0 hp

OEI 2 min transmission power:

0 kW

0 hp

dimensions

Overall length:

6.1 m

20.008 ft

Rotor diameter:

5.9 m

19.352 ft

Tail rotor diameter:

1 m

3.28 ft

Fuselage length:

4.9 m

16.072 ft

Overall height:

2.1 m

6.888 ft

Main rotor blades chord:

0 m

0 ft

Tail rotor blades chord:

0 m

0 ft

Mast tilt angle:

0 °

noise

Noise at flyover, level:

0 dB EPNL

Noise at flyover, limit:

0 dB EPNL

Noise at takeoff, level:

0 dB EPNL

Noise at takeoff, limit:

0 dB EPNL

Noise at landing, level:

0 dB EPNL

Noise at landing, limit:

0 dB EPNL

crew and pax

Crew:

1

Max pax number:

0

use

Average price:

32000 $

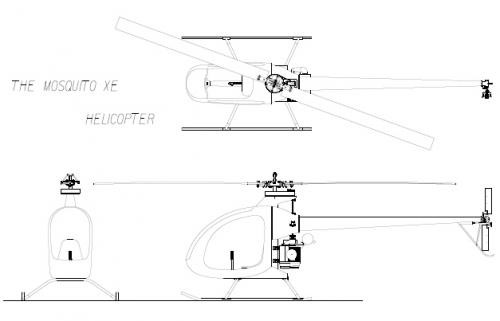

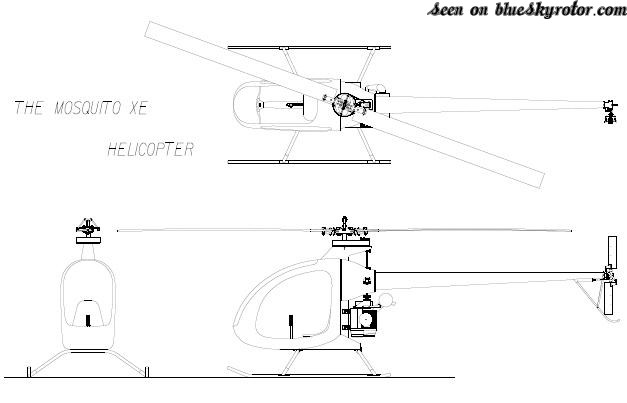

3views

Mosquito Aviation Mosquito Mosquito XE

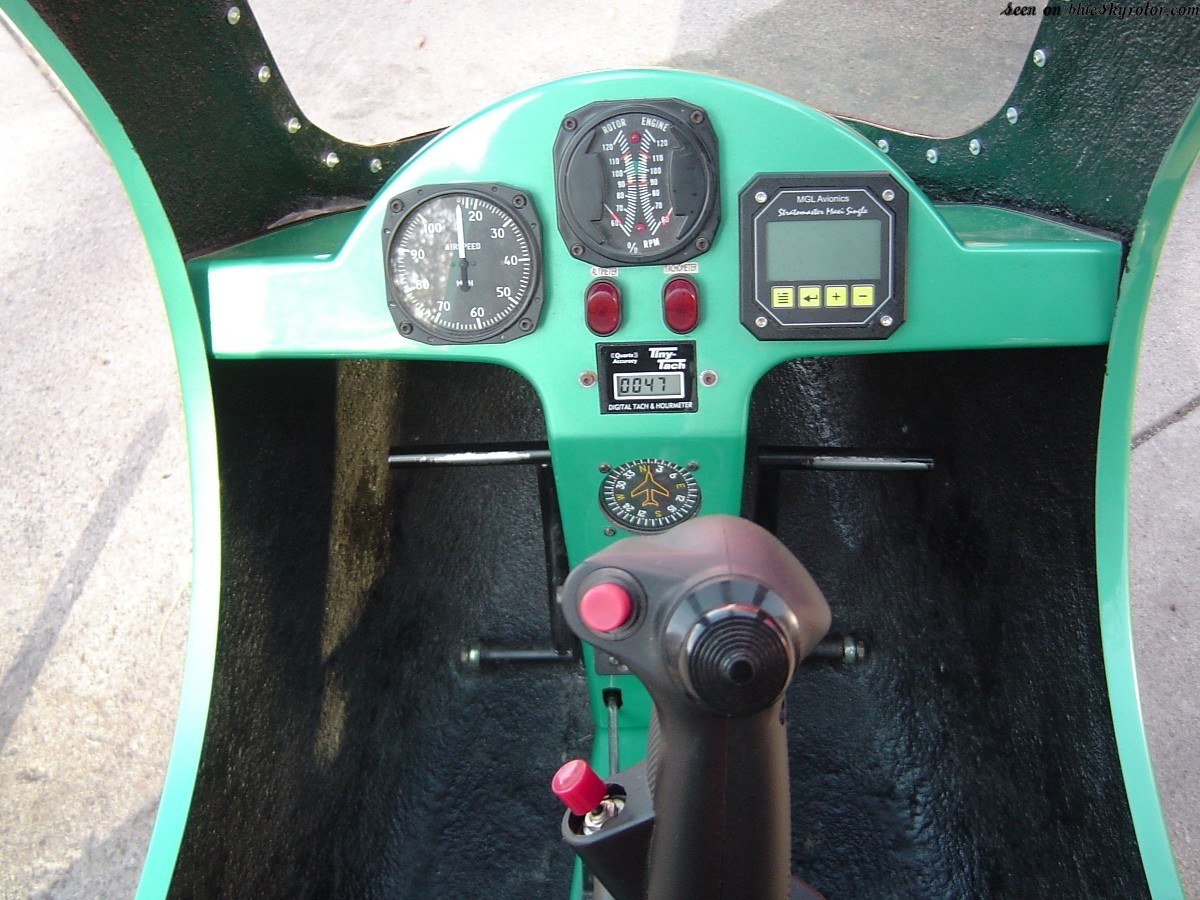

cockpit front panel

Mosquito Aviation Mosquito Mosquito XE

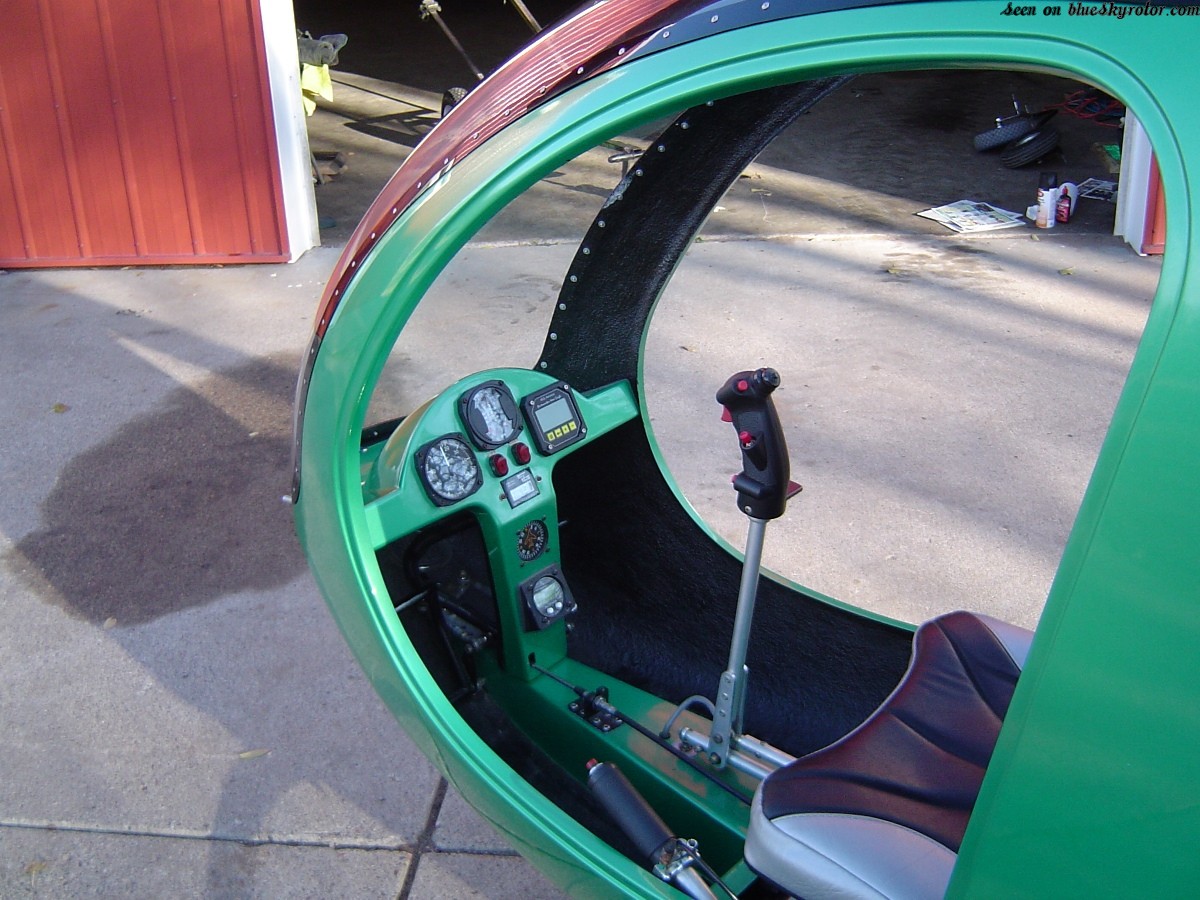

cockpit general

Mosquito Aviation Mosquito Mosquito XE

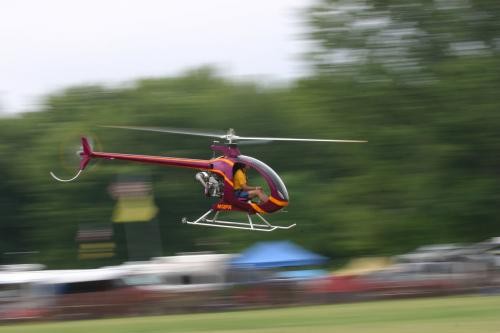

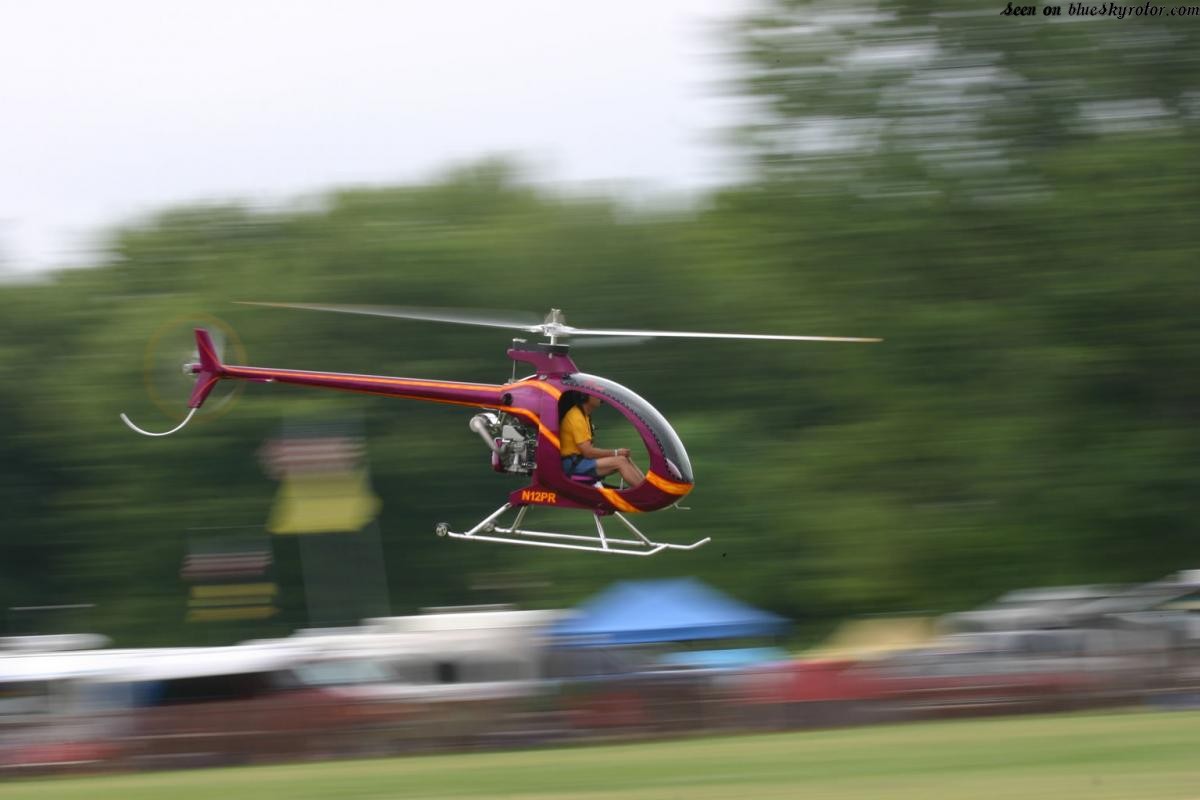

general

Mosquito Aviation Mosquito Mosquito XE

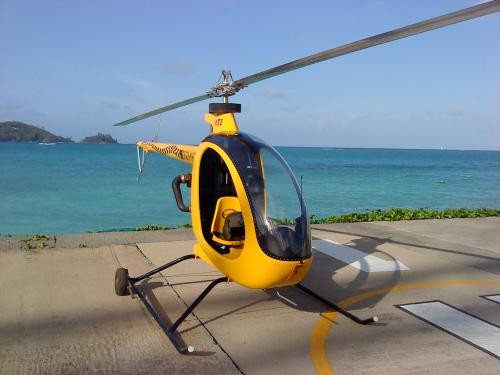

on ground

Mosquito Aviation Mosquito Mosquito XE

source: www.air-evasion.be

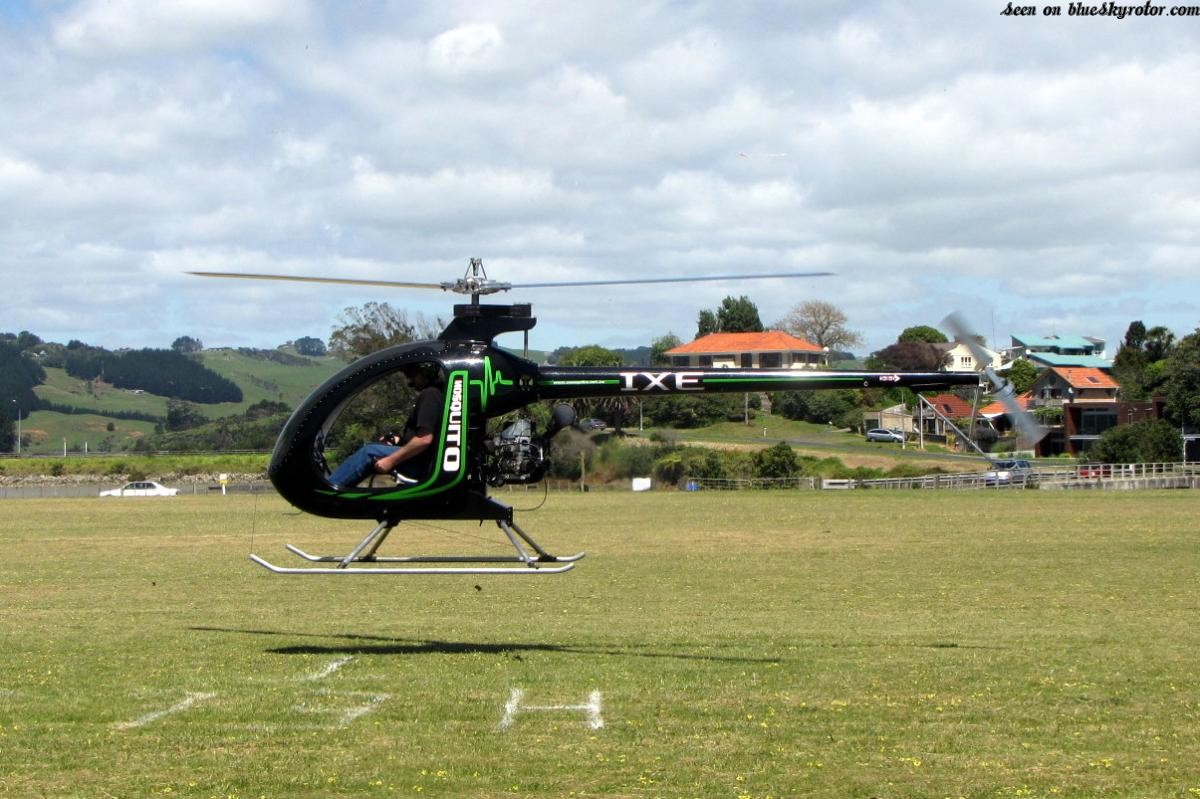

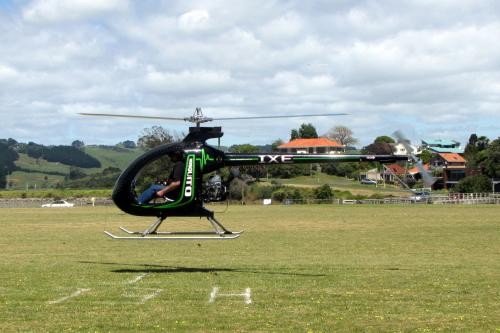

left side

Mosquito Aviation Mosquito Mosquito XE
